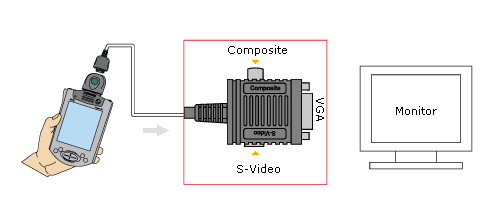

Requirements | Cable
connection chart |
Package Contents
|
| |
| |
|
The
FlyPresenter-CF is a CompactFlash VGA/video
output device that allows you to display the
contents of your Pocket PC!|s screen on an
external projector, monitor, or television.
There's no need for a laptop when the FlyPresenter-CF
lets you use your compact PDA to show your PowerPoint
files, effectively making your PDA a large-audience
presentation toolkit!
The
FlyPresenter-CF supports VGA output up to 1024x768
with 64K color, NTSC/PAL video output, and can
show more than just PowerPoint files! Give slideshows
of your saved images, and present up to 9 images
at the same time. Playback movie files on your
PDA and output them to a larger display. You
can even output the contents of the PDA screen,
making it easy to give software or instructional
demonstrations!
The
included remote control gives you full control
over your presentation from up to 7 meters away!
With LifeView!|s FlyPresenter-CF, your
PDA is all you need to conduct professional
presentations anywhere!
.
|
| |
|
| |
|
 |
| |
|
| |
- Max.
1024x768 (VGA) 64K colors output
- NTSC
/ PAL composite video and S-video out
- Show
PowerPoint presentations and slide shows
from saved images
- Play
movie files from PDA at up to 20 fps
- IR
remote control
|
|
VGA/TV
output |
| |
- Output
your Pocket PC screen to an external
display
- Display
and present up to 9 images at the same
time.
- Supports
VGA, S-Video, and composite video output.
- VGA
output supports 640x480, 800x600, 1024x768
at 64k colors.
|
|
Mobile
Presentation / Slideshow |
| |
- Use
your PocketPC to show PowerPoint presentations.
- Present
image files ( .bmp , .jpg, .gif ) using
your Pocket PC
|
|
Motion
Video Output |
|
| |
-
View and output full motion video from
your Pocket PC
|
|
Optional
Remote Control |
|
| |
- Features
Up / Down buttons to give the user slide
Forward / Back functionality during
a slideshow or presentation.
|
|
|
| |
|
| |
|
 |
| |
|
| |
| Interface |
CompactFlash™
Type I |
| VGA
output |
320x240 |
64k
colors (16bits) |
| 640x480 |
64k
colors (16bits) |
| 800x600 |
64k
colors (16bits) |
| 1024x768 |
64k
colors (16bits) |
| Video
output |
Composite
Video (RCA jack) |
| S-Video
(mini-Din 4pin) |
| Selectable
NTSC , PAL |
| Remote
control |
InfraRed
remote |
| Active
range up to 7meters |
| Dimension |
49mm
x 81mm x 12mm |
| Weight |
20g |
| Regulation |
FCC
; CE ; VCCI |
|
| |
Compared to other CF cards which use the IrDA of the PDA and can only be used within a short distance, the FlyPresenter uses the latest IR technology to extend the active range to 7 meters. |
| |
|
| |
|
 |
| |
|
| |
 |
| |
|
| |
|
 |
| |
|
| |
- Supported
PDAs
- Pocket
PC
-OS: Microsoft® Pocket PC 2000, 2002,
or 2003.
-CPU: Intel StrongArm , Xscale , SH3/4
, MIPS
-
Available CompactFlash™ slot.
- Storage
memory : Minimum of 3MB in your Pocket
PC required for software installation.
Minimum of 15MB memory free for running
the software
- Please
check the list of compatible Pocket PCs
we have tested in our laboratory.
NOTE:
FlyPresenter-CF is also compatible with handheld
PCs, Tablet PCs, and other PDAs that use Microsoft
WinCE 3.0 or WinCE.net, but those devices
may have varying CPUs and may use customized
software. We only provide the Pocket PC driver
for Pocket PC devices in the retail package.
We provide a free
SDK for the FlyPresenter-CF if you would
like to develop application software compatible
with the device.
For any special requirements for drivers or
software, please contact support@lifeview.com.tw
|
|
| |
|
 |
| |
|
| |
|
The bundled FlyPresenter Suite includes |
| |
- IA
Presenter(FP): Converts PowerPoint files and runs slideshows
- IA
ScreenMirror(FP): Shows the contents of the PDA's display
- IA
Album(FP): Shows images stored on the PDA
NOTE
: Above bundled software and driver are only
compatible with Pocket PC. |
 |
|
 |
| Image
slideshow |
|
PDA
Education |
| Use
the FlyPresenter-CF to display slideshows
of your images and photos to a TV or projector. |
|
Use the FlyPresenter-CF for software demostrations to a large audience, or to demonstrate operation of the PDA. |
| |
|
|
 |
|
 |
| Mobile
presentation |
|
Play
movie |
| No need for a heavy notebook - simply connect a FlyPresenter-CF equipped PDA to make your presentation. |
|
Play MPEG-1 movies on your PDA, and show them on a larger display at the same time. |
|
| |
|
| |
|
|
|
